C Program: Priority Queue using max Heap - Enqueue and Dequeue operations

C Program to implement Heap: Exercise-6 with Solution

Write a C program that implements a priority queue using a max heap. Apply enqueue and dequeue operations on the priority queue.

Sample Solution:

C Code:

#include <stdio.h>

#define MAX_SIZE 100

// Structure to represent a priority queue
struct PriorityQueue {
    int heap[MAX_SIZE]; // Array to store elements in the priority queue
    int size;           // Current size of the priority queue
};

// Function to swap two elements in the priority queue
void swap(int* a, int* b) {
    int temp = *a;
    *a = *b;
    *b = temp;
}

// Function to heapify a subtree rooted with node i
void maxHeapify(struct PriorityQueue* pq, int i) {
    int largest = i;    // Initialize largest as the root
    int left = 2 * i + 1; // Calculate index of the left child
    int right = 2 * i + 2; // Calculate index of the right child

    // If left child is larger than root
    if (left < pq->size && pq->heap[left] > pq->heap[largest])
        largest = left;

    // If right child is larger than largest so far
    if (right < pq->size && pq->heap[right] > pq->heap[largest])
        largest = right;

    // If largest is not root
    if (largest != i) {
        // Swap the found largest element with the root
        swap(&pq->heap[i], &pq->heap[largest]);

        // Recursively heapify the affected sub-tree
        maxHeapify(pq, largest);
    }
}

// Function to build a max heap
void buildMaxHeap(struct PriorityQueue* pq) {
    // Start from the last non-leaf node and heapify all nodes in reverse order
    for (int i = pq->size / 2 - 1; i >= 0; i--) {
        maxHeapify(pq, i);
    }
}

// Function to enqueue an element into the priority queue
void enqueue(struct PriorityQueue* pq, int value) {
    if (pq->size == MAX_SIZE) {
        printf("Priority Queue is full. Cannot enqueue.\n");
        return;
    }

    pq->heap[pq->size] = value;
    pq->size++;

    // Rebuild the max heap after enqueue operation
    buildMaxHeap(pq);
}

// Function to dequeue the maximum element from the priority queue
int dequeue(struct PriorityQueue* pq) {
    if (pq->size == 0) {
        printf("Priority Queue is empty. Cannot dequeue.\n");
        return -1;  // Assuming -1 is not a valid element in the priority queue
    }

    int maxElement = pq->heap[0];
    pq->heap[0] = pq->heap[pq->size - 1];
    pq->size--;

    // Rebuild the max heap after dequeue operation
    maxHeapify(pq, 0);

    return maxElement;
}

// Function to print the priority queue
void printPriorityQueue(struct PriorityQueue* pq) {
    printf("Priority Queue: ");
    for (int i = 0; i < pq->size; i++) {
        printf("%d ", pq->heap[i]);
    }
    printf("\n");
}

int main() {
    struct PriorityQueue pq = {{5, 10, 4, 3, 1}, 5}; // Initialize a priority queue with some elements

    printf("Initial ");
    printPriorityQueue(&pq);

    // Enqueue
    enqueue(&pq, 15);
    printf("After Enqueue (15): ");
    printPriorityQueue(&pq);

    // Dequeue
    int maxElement = dequeue(&pq);
    if (maxElement != -1) {
        printf("Dequeued Max Element: %d\n", maxElement);
        printPriorityQueue(&pq);
    }

    return 0;
}

Output:

Initial Priority Queue: 5 10 4 3 1
After Enqueue (15): Priority Queue: 15 10 5 3 1 4
Dequeued Max Element: 15
Priority Queue: 10 4 5 3 1

Explanation:

In the exercise above,

• Struct Definition:
• struct PriorityQueue: Represents a priority queue using an array-based max heap. It contains an array to store elements (heap) and the current size of the queue (size).
• Utility Functions:
• swap: Swaps two elements in the priority queue.
• maxHeapify: Ensures a subtree rooted at a given index maintains the max-heap property.
• buildMaxHeap: Constructs a max heap from an array.
• enqueue: Adds an element to the priority queue and rebuilds the max heap.
• dequeue: Removes the maximum element from the priority queue and rebuilds the max heap.
• printPriorityQueue: Prints the elements in the priority queue.
• Main Function:
• Initializes a priority queue with some elements.
• Demonstrates enqueue and dequeue operations on the priority queue by adding an element (enqueue) and removing the maximum element (dequeue).
• Outputs the priority queue before and after each operation to show the changes made.

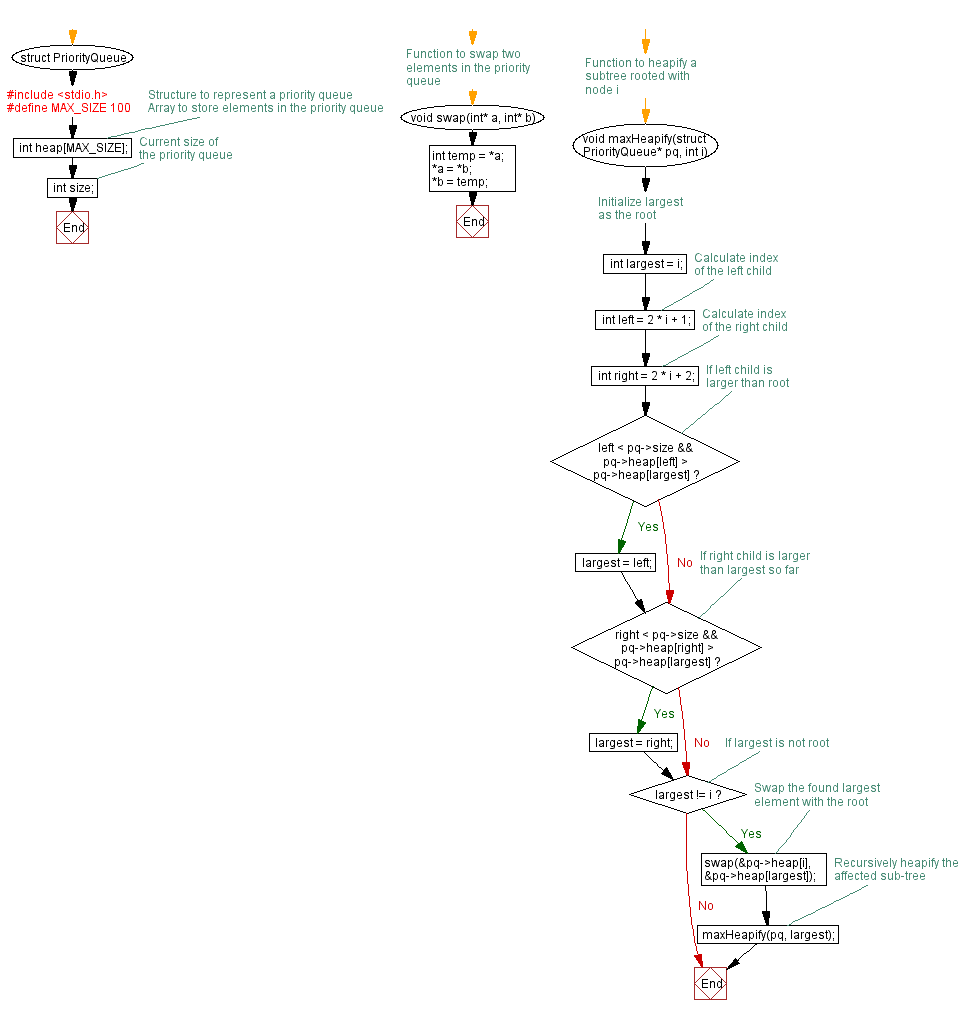

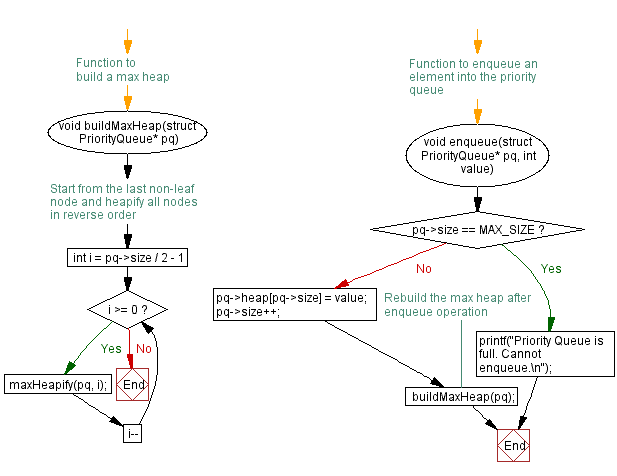

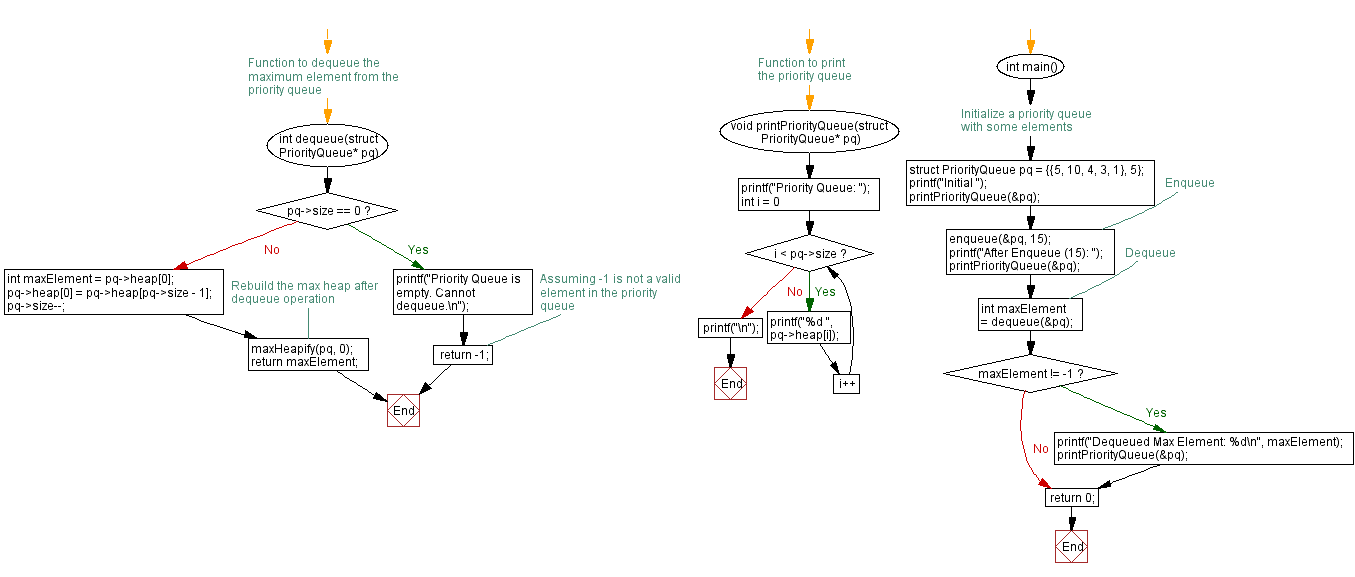

Flowchart:
