JavaFX GridPane: Simple form creation example

JavaFx Layout Management: Exercise-4 with Solution

Write a JavaFX program that uses a GridPane to create a simple form with labels and text fields.

Sample Solution:

JavaFx Code:

//Main.java

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.control.Label;
import javafx.scene.control.TextField;
import javafx.scene.layout.GridPane;
import javafx.stage.Stage;

public class Main extends Application {

    public static void main(String[] args) {
        launch(args);
    }

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("Simple Form Example");

        // Create a GridPane layout
        GridPane gridPane = new GridPane();
        gridPane.setHgap(10);
        gridPane.setVgap(10);

        // Create labels and text fields
        Label nameLabel = new Label("Name:");
        TextField nameField = new TextField();

        Label ageLabel = new Label("Age:");
        TextField ageField = new TextField();

        Label emailLabel = new Label("Email:");
        TextField emailField = new TextField();

        // Add labels and text fields to the GridPane
        gridPane.add(nameLabel, 0, 0);
        gridPane.add(nameField, 1, 0);

        gridPane.add(ageLabel, 0, 1);
        gridPane.add(ageField, 1, 1);

        gridPane.add(emailLabel, 0, 2);
        gridPane.add(emailField, 1, 2);

        // Create the scene and set it in the stage
        Scene scene = new Scene(gridPane, 300, 200); // Width and height of the window
        primaryStage.setScene(scene);

        // Show the window
        primaryStage.show();
    }
}

In the exercise above, we create a 'GridPane' layout and add labels and text fields to create a simple form. The 'setHgap' and 'setVgap' methods are used to set horizontal and vertical gaps between cells in the grid. You can run this application to see the simple form layout.

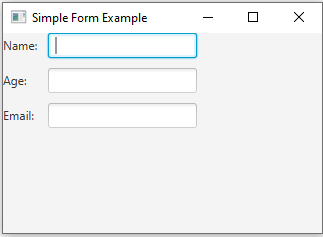

Sample Output:

Flowchart:
