Python custom progress bar widget with PyQt

Python PyQt Widgets: Exercise-12 with Solution

Write a Python program to create a custom progress bar widget that displays a progress percentage using PyQt. Create methods to set and update progress values.

From doc.qt.io:

QApplication Class: The QApplication class manages the GUI application's control flow and main settings.

QWidget Class: The QWidget class is the base class of all user interface objects.

QVBoxLayout Class: The QVBoxLayout class lines up widgets vertically.

QPushButton Class: The QPushButton widget provides a command button.

QPainter Class: The QPainter class performs low-level painting on widgets and other paint devices.

QColor Class: The QColor class provides colors based on RGB, HSV or CMYK values.

QFont Class: The QFont class specifies a query for a font used for drawing text.

Sample Solution:

Python Code:

import sys
from PyQt5.QtWidgets import QApplication, QWidget, QVBoxLayout, QPushButton
from PyQt5.QtGui import QPainter, QColor, QFont
from PyQt5.QtCore import Qt, QTimer

class CustomProgressBar(QWidget):
    def __init__(self):
        self.setMinimumSize(300, 50)
        self.progress = 0

    def set_progress(self, value):
        self.progress = value

    def paintEvent(self, event):
        painter = QPainter(self)

        # Define progress bar dimensions
        bar_width = 250
        bar_height = 30
        bar_x = (self.width() - bar_width) / 2
        bar_y = (self.height() - bar_height) / 2

        # Draw the background of the progress bar
        painter.setBrush(QColor(200, 200, 200))
        painter.drawRect(bar_x, bar_y, bar_width, bar_height)

        # Draw the filled portion of the progress bar
        fill_width = int(bar_width * (self.progress / 100))
        painter.setBrush(QColor(0, 160, 230))
        painter.drawRect(bar_x, bar_y, fill_width, bar_height)

        # Display progress percentage text
        font = QFont("Arial", 12)
        painter.setPen(QColor(0, 0, 0))
        text = f"{int(self.progress)}%"
        text_width = painter.fontMetrics().width(text)
        text_x = (self.width() - text_width) / 2
        text_y = bar_y + bar_height + 20
        painter.drawText(text_x, text_y, text)

class ProgressBarApp(QWidget):
    def __init__(self):
        self.setWindowTitle("Custom Progress Bar")
        self.setGeometry(100, 100, 400, 200)

        layout = QVBoxLayout()
        self.progress_bar = CustomProgressBar()

        self.button = QPushButton("Start Progress")


        # Initialize timer for smooth progress update
        self.timer = QTimer(self)

    def start_progress(self):
        self.progress = 0
        self.timer.start(100)  # Update every 100 milliseconds

    def update_progress(self):
        if self.progress <= 100:
            self.progress += 1

def main():
    app = QApplication(sys.argv)
    window = ProgressBarApp()

if __name__ == "__main__":


In the exercise above -

  • Import the necessary modules from PyQt5.
  • Create a CustomProgressBar class that subclasses QWidget to create the custom progress bar widget.
  • The "set_progress()" method allows you to set the progress value and triggers a repaint of the progress bar.
  • In the "paintEvent()" method, we use QPainter to draw the progress bar and the filled portion based on the progress value.
  • Display the progress percentage text below the progress bar.
  • The "ProgressBarApp" class creates the main application window with a custom progress bar and a button to start progress updates.
  • Added a QTimer named timer to the ProgressBarApp class. This timer periodically calls the "update_progress()" method.
  • The "start_progress()" initializes the progress value and starts the timer to update the progress every 100 milliseconds.
  • It is disabled during progress updates and enabled after completion.

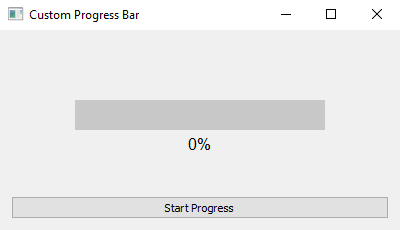

PyQt: Python custom progress bar widget with PyQt. Part-1

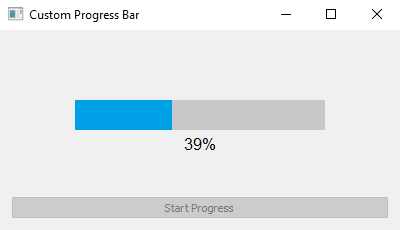

PyQt: Python custom progress bar widget with PyQt. Part-2
PyQt: Python custom progress bar widget with PyQt. Part-3


Flowchart: Python custom progress bar widget with PyQt.
Flowchart: Python custom progress bar widget with PyQt.
Flowchart: Python custom progress bar widget with PyQt.
