Python Tkinter drawing App - Freehand drawing and undo

Python Tkinter Canvas and Graphics: Exercise-9 with Solution

Write a Python program to design a drawing application with Tkinter that allows users to draw freehand on a Canvas widget. Implement an "Undo" button to remove the last drawn line.

Sample Solution:

Python Code:

import tkinter as tk

class DrawingApp:
    def __init__(self, root):
        self.root = root
        self.root.title("Drawing App")

        self.canvas = tk.Canvas(root, bg="white")
        self.canvas.pack(fill=tk.BOTH, expand=True)

        self.pen_color = "black"
        self.drawing = False
        self.last_x, self.last_y = None, None

        self.lines = []  # List to store drawn lines

        self.undo_button = tk.Button(root, text="Undo", command=self.undo)
        self.erase_button = tk.Button(root, text="Erase", command=self.erase)

        self.canvas.bind("<Button-1>", self.start_draw)
        self.canvas.bind("<B1-Motion>", self.draw)
        self.canvas.bind("<ButtonRelease-1>", self.stop_draw)

    def start_draw(self, event):
        self.drawing = True
        self.last_x, self.last_y = event.x, event.y

    def draw(self, event):
        if self.drawing:
            x, y = event.x, event.y
            line = self.canvas.create_line(self.last_x, self.last_y, x, y, fill=self.pen_color, width=2)
            self.lines.append(line)  # Store the drawn line
            self.last_x, self.last_y = x, y

    def stop_draw(self, event):
        self.drawing = False

    def undo(self):
        if self.lines:
            last_line = self.lines.pop()  # Remove the last drawn line

    def erase(self):

if __name__ == "__main__":
    root = tk.Tk()
    app = DrawingApp(root)


In the exercise above -

  • Import the "tkinter" library.
  • "DrawingApp" class represents the main application.
  • Initializing the application:
    • In the init method, the application's main window (root) is created and titled "Drawing App."
    • A Canvas widget is created.
  • Setting up initial attributes:
    • pen_color: It represents the drawing pen color and is initially set to black.
    • drawing: A Boolean variable that keeps track of whether the user is currently drawing.
    • last_x and last_y: These variables store the coordinates of the last drawn point.
    • lines: A list to store references to the lines drawn on the canvas.
  • Creating buttons:
    • Two buttons, "Undo" and "Erase," are created using the "Button" widget. The command parameter specifies the functions to be executed when the buttons are clicked.
    • The buttons are scattered along the left side of the main window.
  • Binding mouse events:
    • The Canvas widget is bound to three mouse events:
      • <Button-1>: Triggered when the left mouse button is pressed. It calls the start_draw method.
      • <B1-Motion>: Triggered when the left mouse button is moved while pressed. It calls the draw method.
      • <ButtonRelease-1>: Triggered when the left mouse button is released. It calls the stop_draw method.
  • Define event handling methods:
    • start_draw(event): Sets the drawing flag to True and records the starting coordinates of the drawing.
    • draw(event): Draws lines on the canvas as the mouse is moved. It creates a line object, stores it in the lines list, and updates the last_x and last_y values.
    • stop_draw(event): Sets the drawing flag to False when the mouse button is released.
    • undo(): Removes the last drawn line by deleting it from the canvas and removing its reference from the lines list.
    • erase(): Clears the entire canvas by deleting all elements with the tag "all."
  • Finally, start the Tkinter main loop with "root.mainloop()".

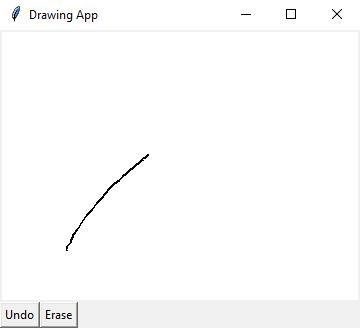

Tkinter: Freehand drawing and undo. Part-1

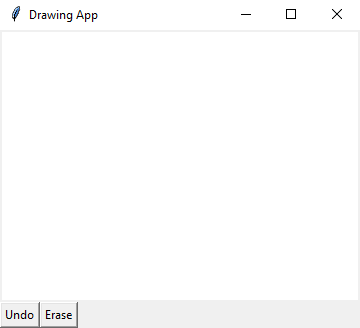

Tkinter: Freehand drawing and undo. Part-2


Flowchart: Freehand drawing and undo.
Flowchart: Freehand drawing and undo.
